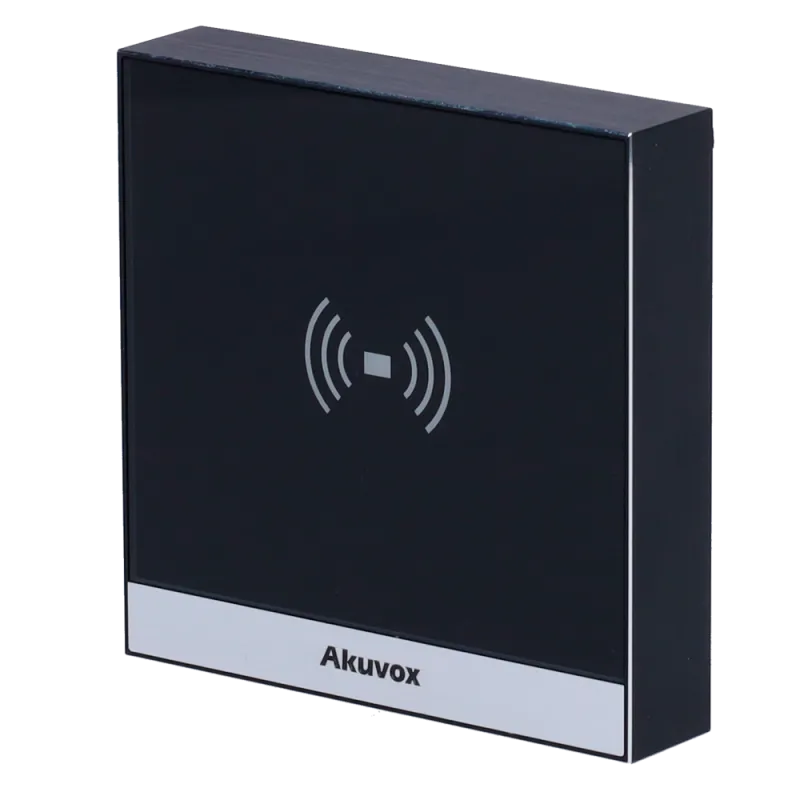

A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay.
This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz and NFC.
Advanced configurable functions: anti-pass-back technology (does not allow a person to pass through if he/she is already inside) and 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE).
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK07 anti-vandalism rating allows it to withstand the most challenging environments.
From the Akuvox Cloud, the configuration of users, schedules and access groups, as well as special functions, opening times of the relays or reading time of the readers is performed.
- Akuvox
- Access control
- Stand-alone operation or as a reader
- Integrated speaker
- EM/MF card and NFC identification
- Capacity for 20.000 cards & 100.000 registers
- TCP/IP Connection
- PoE IEEE802.3af
- Remote door opening
- 1 relay output
- 12 V/500 mA output (when powered to PoE)
- Port Wiegand
- Configurable LED illumination on card reader
- Suitable for exterior IP65
- Integrated controller and access times
- Advanced features: anti-passback (through Cloud)
- Surface mounting
- Complete configuration via web browser
- Push notifications
- 4 free users included per house
- Firmware upgrades via cloud with installer control
- Connection between devices via cloud on different networks
- Remote configuration access for installation
