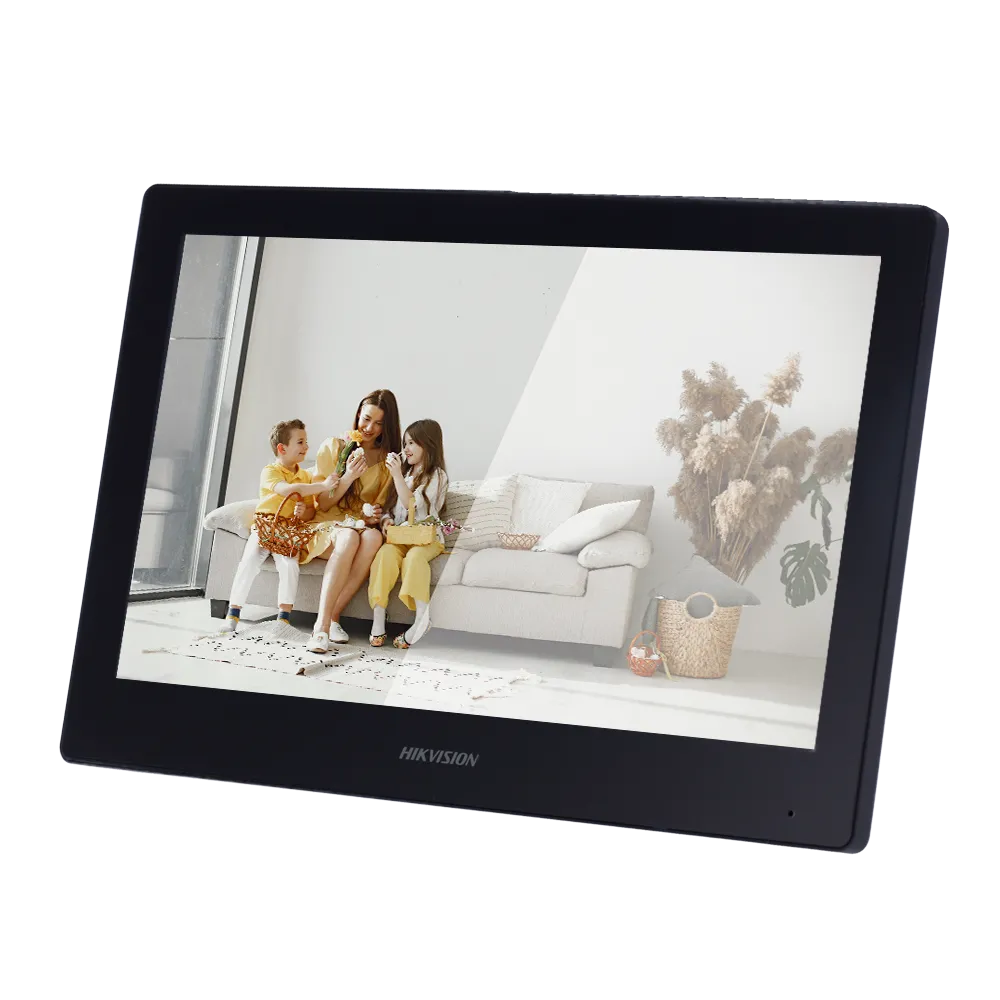

DS-KH8520-WTE1/EU

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.

This model has a 10" touch screen for easy operation by the user.

IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.

By having 2 relay outputs it is possible to act on different elements, such as doors or doorbells to be triggered during calls.

From the software iVMS-4200 you can link boards and monitors to make and receive calls, create contacts, send informative messages to monitors or review call logs.

With the Hik-Connect mobile application, the end user can receive calls, open the door or view the panel camera live, all from any location.

• Hikvision
• TFT touch screen for video door entry system of 10"
• Built-in microphone and speaker
• Bidirectional audio
• 8 alarm inputs
• 2 relay outputs
• MicroSD slot
• Image capture and recording
• Multiple screen extensions
• TCP/IP and WiFi
• PoE IEEE802.3af
• Internal calls between devices
• Surface mounting
• Push notifications via Hik-Connect app (when receiving a call from an external board)
