A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay. Hybrid terminals combine access control and time and attendance control, being able to perform time and attendance control of workers at the moment they identify themselves.
This equipment allows identification through cards or key fobs with MF technology of 13.56 MHz, as well as keypad for numeric codes and fingerprint biometrics.
Its 2.4" screen facilitates the operation and configuration of the equipment locally, both to use it autonomously without software, and to set some parameters required to connect to the software, such as network configuration.
Advanced configurable functions: 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE)
The CrossChex Standard software is used to configure users, schedules and access groups, as well as special functions, relay opening times or reader reading times.
- Anviz

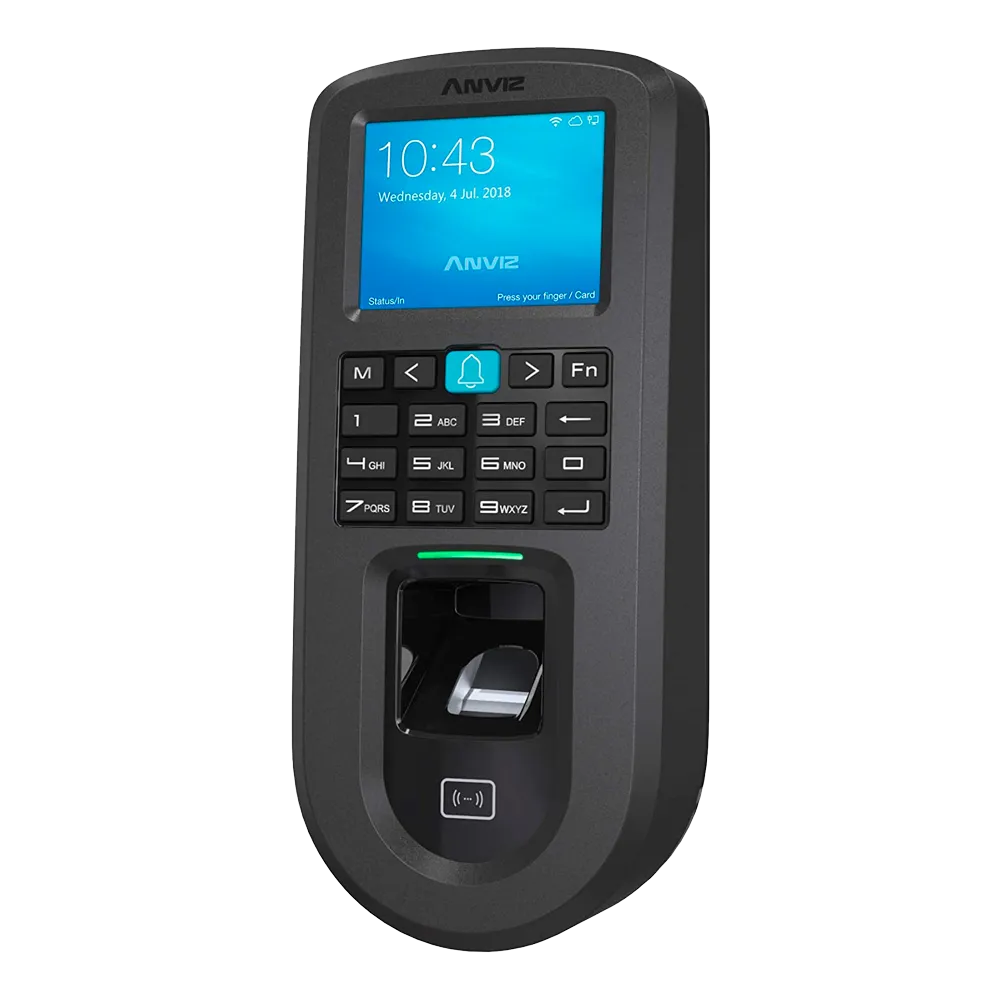

- Autonomous biometric reader for Access and Time & Attendance control
- Identification by MF card, fingerprint, PIN and/or combinations
- Keypad and 2.4" TFT colour screen
- 3.000 fingerprints, 3.000 cards/passwords and 100.000 records Capacity
- TCP/IP, WiFi, USB, RS485 and Wiegand communication
- Integrated controller (door sensor, push button and relay)
- Anti-passback and buzzer function
- 8 Time and attendance modes
- Control of schedules, shifts and cycles
- Standard PoE IEEE802.3af
- CrossChex Standard management software included
- Shift and schedule management via the free CrossChex Cloud
