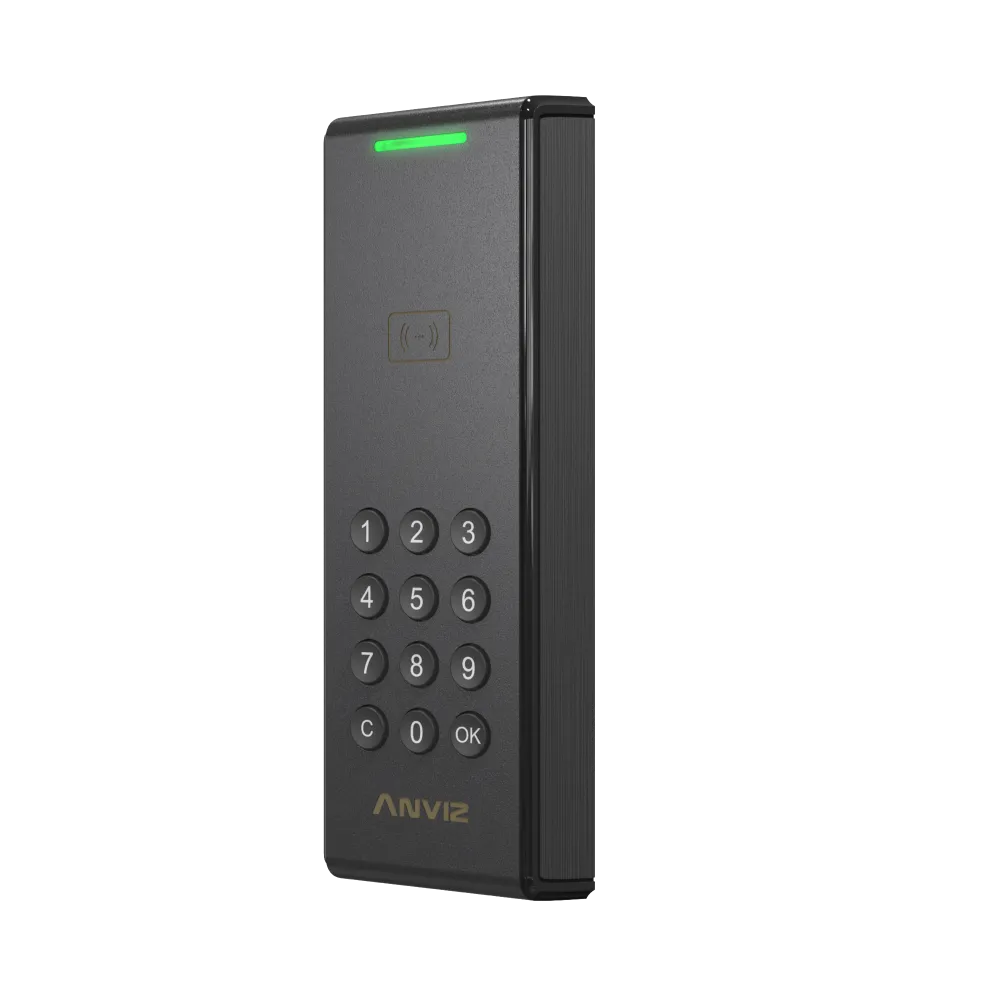

C2KA-BT-WIFI

A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay.

This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz, as well as keypad for numeric codes.

Advanced configurable functions: 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE).

Its exterior grade IP65 allows it to be installed outdoors.

The CrossChex Standard software is used to configure users, schedules and access groups, as well as special functions, relay opening times or reader reading times.

• Anviz
• Standalone access control reader
• EM/MF card, PIN and/or combination identification
• Capacity 10.000 cards/passwords and 100.000 records
• TCP/IP, WiFi, Bluetooth, RS485 and Wiegand communication
• Integrated controller (door sensor, push button and relay)
• Suitable for exterior IP65
• Standard PoE IEEE802.3af
• Compatible with CrossChex Standard software
• Management of users and openings from the free CrossChex Mobile App available for iOS and Android
